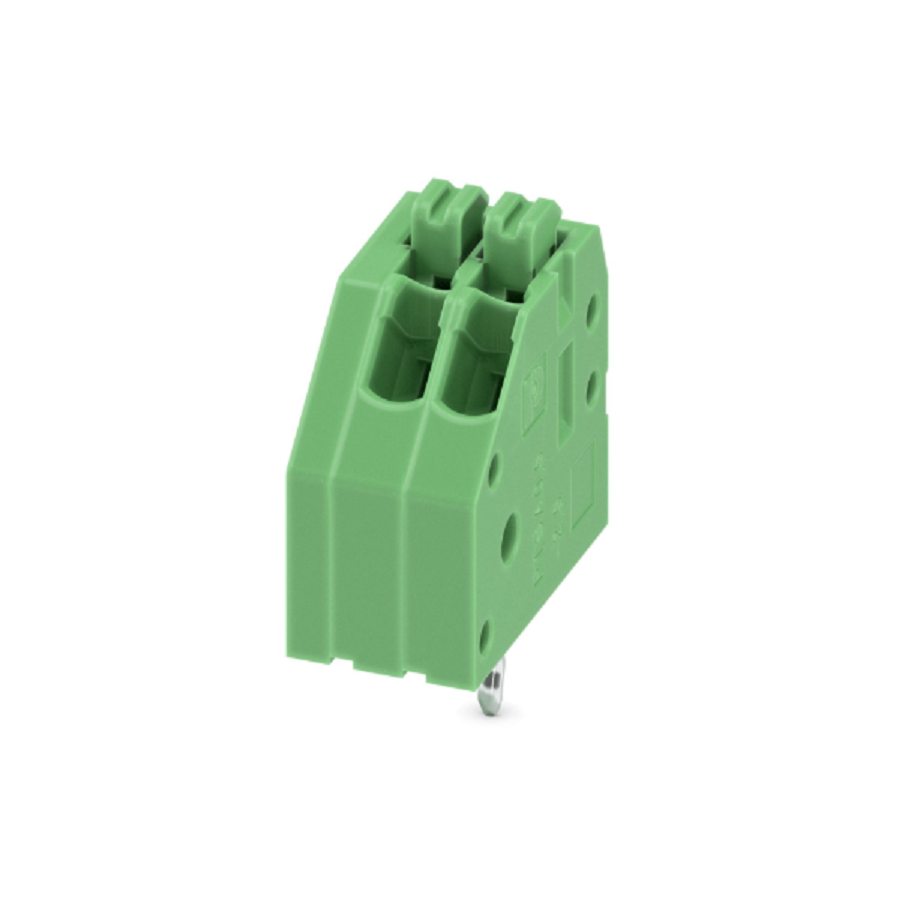

1990067
Manufacturer:
Phoenix Contact
Mfr.Part #:
1990067
Datasheet:
Description:
Terminal Blocks Through Hole 8 2.5 mm 2 A 250 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 21.5 mm |
| Termination | Screwless - Spring Cage, Tension Clamp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 16.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 2.810005 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Current | 2 A |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL, VDE |
| Number of Circuits | 8 |
| Orientation | 45° (135°) Angle with Board |
| Color | Green |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Positions Per Level | 8 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Green |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
